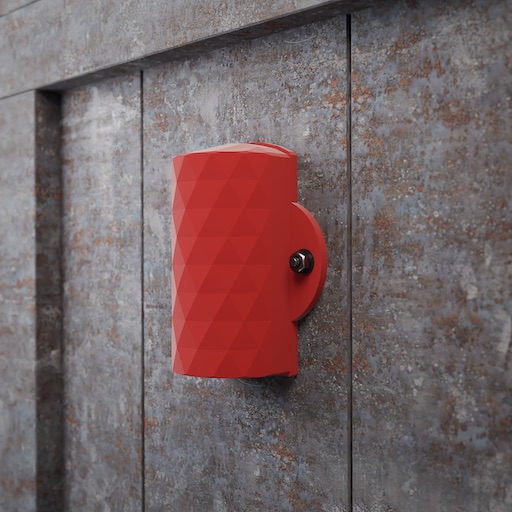

SimpleIndustry Precise External Temperature Hot

Project Description

Device Specifications:

• Dimensions: 94 x 65 x 32,5 mm (without holder)
• Volume: 105 cm3
• Weight: 66 g
• Color: Red
• Recommended operating temperature: -20°C to 105°C
• Waterproof rating: IP68
• Fixtures for screws drill in and high tensile cable ties:  Horizontal mounting (vertical or magnet upon request)
• End customer packaging: Optional, several ready options
• Branding: Optional, several ready options

SENSORS:

• Button: No
• LED: No
• Accelerometer: Yes
• Vibration detection and recording: Yes
• Inclination detection: Yes
• Shock detection: Yes
• WiFi sniffing for tracking: Yes
• Ambient temperature:  Yes , +-3°C
• Precise temperature: Yes, +-0,5°C
• Humidity: No
• Recording and redundant reporting of events: Yes
• Magnetometer for door opening: No
• Reed switch for door opening and status: Yes
• Reed switch recording and counting: Yes
• Ambient light detection: Yes
• Machine learning / AI:  No
• Barometer: No
• Gyroscope: No
• Pedometer: No
• Precise time: No
• World time clock: No
• External thermometer: No
• External reed switch sensor: No
• External flood sensor:No
• Water leakage: No
• Alarm sirene: No

SOFTWARE:

Number of ready business cases: 10+

• Full IoT platform provided with trial period:  Yes
• Any IoT platform support: Yes
• Programming of the device behaviour: Through web platform
• Automation and workflow support: Yes
• Custom firmware: Yes

RADIO PERFORMANCE:

• Supported radio zones: All zones
• Multizone: Yes
• Monarch support: Yes
• Sigfox Ready Class: Class 0 – Best
• Sigfox IoT agency designed and tuned antenna: Yes
• Support of 1 frame sending: Yes
• Support of 600 bps encoding: Yes
• Legal support of 2592 messages a day:  Yes
