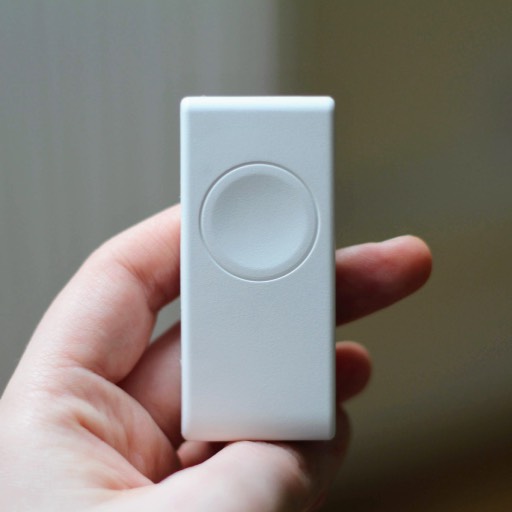

SimplePack 4.0 Basic

Portfolio Image

Project Description

Specification

Technical data:

  • Physical Information:
  • Dimensions:  65 x 29 x 10 mm
  • Volume 19 cm3
  • Weight 17 g
  • Color White
  • Recommended operating temperature: -40°C to 60°C
  • Waterproof rating IP68
  • Fixtures for screws drill in and high tensile cable ties: Optional
  • End customer packaging : Optional, several ready options
  • Branding: Optional, several ready options

Sensors:

  • Button: Yes
  • LED Yes- red
  • Accelerometer: Yes
  • Vibration detection and recording: Yes
  • Inclination detection: Yes
  • Shock detection: Yes
  • WiFi sniffing for tracking No
  • Ambient temperature: Yes+-3°C
  • Precise temperature: Optional, +-0,5°C
  • Humidity:  No
  • Recording and redundant reporting of events: Yes
  • Magnetometer for door opening: Optional
  • Reed switch for door opening and status:  Optional
  • Reed switch recording and counting:  Optional
  • Ambient light detection:  Optional



Software:

  • Number of ready business cases:  50+
  • Full IoT platform provided with trial period: Yes
  • Any IoT platform support: Yes
  • Programming of the device behavior through web platform
  • Automation and workflow support: Yes
  • Custom firmware: Yes



Radio Performance:

  • Supported radio zones RC1 (Europe & Africa), RC3 (Japan)
  • Multizone RC1 (Europe & Africa), RC3 (Japan)
  • Monarch support: No
  • Sigfox Ready Class Class 0 – Best
  • Sigfox IoT agency designed and tuned antenna: Yes
  • Support of 1 frame sending: Yes
  • Support of 600 bps encoding: Yes
  • Legal support of 2592 messages a day : Yes
